JASUPrecision Machinery Patent Processing Center Shipped to Fujian for Further Growth of Enterprise Production

CNC machine tool is an industrial machine tool, and its technical level represents a country's comprehensive competitiveness. High grade CNC machine tools have a decisive influence on a country's aviation, aerospace, military, scientific research, precision equipment, high-precision medical equipment and other industries. To vigorously develop high-end equipment manufacturing industry is an inevitable requirement to enhance the core competitiveness of China's industry and a strategic choice to seize the commanding heights of future economic and technological development. Guided by the policy of Made in China 2025, Guangzhou JASUPrecision Machinery Co., Ltd. (hereinafter referred to as "JASUPrecision Machinery") actively cooperates with the transformation and upgrading of enterprise equipment to provide machine tool users with "good and fast" machine tools for processing and manufacturing. On July 20, three V-1060D three axis rail moving beam machining centers and one L-4050 two axis rail horizontal lathe ordered by Fujian customers were successfully shipped, and JASUPrecision Machine sent new mechanical power to domestic manufacturing enterprises.

Three V-1060D three axis rail moving beam machining centers and one L-4050 two axis rail horizontal lathe were successfully loaded

The Center is a patented product of JASUPrecision Machining Co., Ltd. and an "expert" in auto parts processing. V-1060D three-axis rail moving beam type vertical machining center belongs to the JASUV-D series and is a representative product under this series. In addition to the automobile industry, this model is also suitable for machinery, textile, mold, aerospace, motor, valve and other industries. V-1060D new generation CNC machining center. The main structure of the lathe bed is calculated and designed by the finite element analysis method, with high rigidity and stability. The bed adopts a pillar structure, and the X axis moves back and forth on the beam. The three-axis guide rail is a heavy roller line rail, providing guarantee for heavy cutting of the machine tool. The large diameter pre stretching screw ensures high precision and stable positioning movement. The Y axis only moves forward and backward, greatly improving the rigidity of the machine tool, occupying a small area and facilitating chip removal.

V-1060DThree axis rail moving beam machining center　　

V-1060D three axis rail moving beam machining center Another L-4050 two axis rail horizontal lathe has been displayed in many domestic exhibitions, and it is one of the best-selling products of JASUPrecision Machine. It is applicable to machine tool users in hardware, machinery, automobile, textile, mold, aerospace, motor, valve and other industries. L4050 two axis rail horizontal lathe adopts fully sealed sheet metal design, and the 45 ° integrated bed structure is conducive to the up and down of the workpiece and the discharge of iron filings. Its X and Z axis adopt imported linear rolling guide rail, which reduces the wear of the machine tool. The machine tool is equipped with a high rigidity and large diameter spindle, which has large output torque and high speed of two axes. The two axis screw rod of this machine tool has the pre stretching function, which can eliminate the transmission backlash and pre compensate the error caused by temperature rise, so as to ensure the machining accuracy of parts.

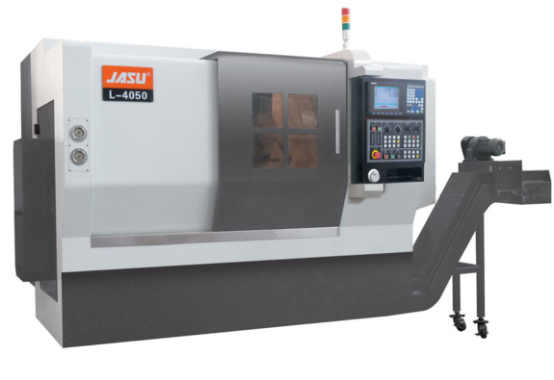

JASU fine machine L4050 two axis rail horizontal lathe　　

JASUfinishing machine L4050 horizontal lathe with two axis rails JASUfinishing machine L4050 horizontal lathe with two axis rails can be installed with 8 to 10 position hydraulic turrets, with high positioning accuracy, tailstock, and can process shaft parts. The machine tool can also be equipped with an automatic indexing brake mechanism of the main shaft, which can cooperate with the power turret or power countershaft to become a turning and milling machining center. In addition, L4050 two axis rail horizontal lathe can realize full automation after adding automatic feeder and full function manipulator. Excellent products and first-class services have brought market orders for JASUfine machinery products. In the first half of 2016, JASUPrecision Machine delivered sophisticated automatic processing machines to machine tool users in Fujian, Shanxi, Guangdong, Yunnan and other places. The company has made steady development in the sluggish market of the machine tool industry. In the future, JASUPrecision Machine will also meet the needs of customers, conform to the trend of the times, and produce more high-tech and excellent machine tools. Pursue excellent quality, create the latest technology, "good and fast" is Jiasuo!
